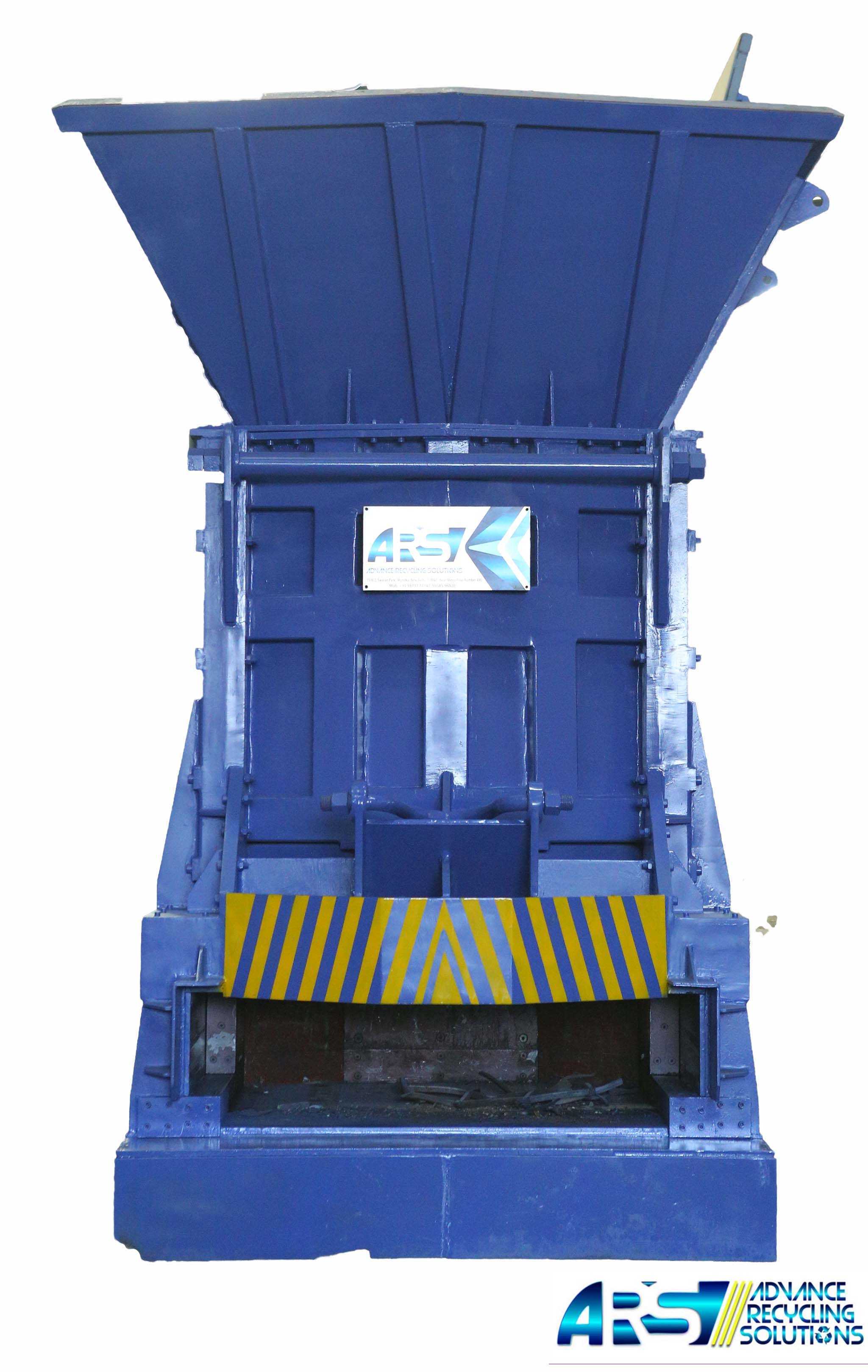

HORIZONTAL SCRAP SHEAR - HSS 400
On the Scrap Shear the PLC interface should show Home Position, (in one of the 3 programs)in this position Push the Autocycle Button and start charging the Mixed Scrap consisting of Commercial, HMS 2, HMS 1 can be put without any sorting by a Grab/Magnet into the Hopper of the Horizontal Shear, on a continuous basis, within minutes you will see the scrap sheared in size of max height 16” coming out of the front end of the Shear.
The charged scrap is first pre-compressed first Hydraulically at 3 levels, densities than Sheared the cut size of max height 16” length
These 16” long pieces are perfectly fit to be charged as first charge Furnace, lift the out coming scrap with a magnet and take to the furnace for meltingMinimum Order Quantity: 1
1 Pack contains : 1 Unit
| Model | ARS-HSS400 |
|---|
| Shear Cylinder Nominal Force | 200 TON X 2 |
| Press Cylinder Nominal Force | 120 TON |
| Chamber Size | 2200 L X 1400W X 22250H (mm) |
| Feeding Size | 3400 LX 2500W X3200H (mm) |
| Electric Motor | 75 H.P X2 |
| Cooling System | Water Cooled Heat Exchanger |
| Control | PLC Control, Delta/Fuji/Mitsubishi are available for your choice, all internationally famous brands |
| Final material size | 400mm in length |
| Capacity | 4-7 tons per hour depending on the density of the in-feed material |
| Oil Tank Capacity | 3000 Ltrs |
