Teknika Electronics

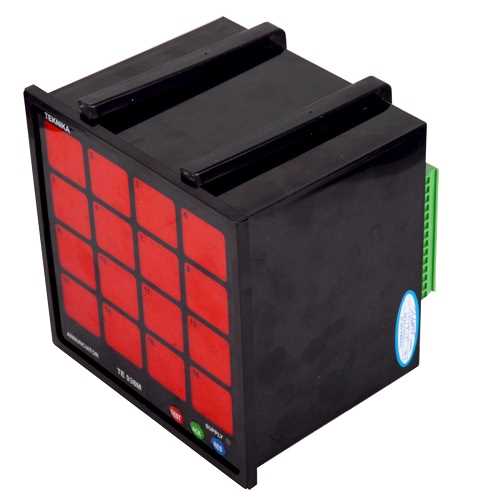

16 Fault Annunciator TE 938M

₹ 13600.00  Incl. GST ₹ 11525.42 Excl. GST

Description

16 Fault Annunciator TE 938M
General Description
These annunciation units TE938M are digital units with front end lit by led's. Applications are in monitoring fault conditions in any process, equipments etc. A fault condition then triggers a buzzer, trip contact and additional contact for hooter in case an external hooter is desired. On receipt of a potential free fault signal, the corresponding window flashes, two changeover contacts changeover to signal trip indication and an internal electronic buzzer beeps to signal fault condition. One additional contact is provided for hooter in case external hooter is desired. When the acknowledge pushbutton on TE938M is pressed the flashing becomes steady, the buzzer stops and the hooter contact is released. After the removal of the fault the unit can be reset by the reset pushbutton. On pressing lamptest all the windows glow simultaneously and the buzzer sounds. This is a diagnostics tool.

Salient Features
• Integrated unit having full feature set
• Additional lamp test provision enables diagnostics
• Incorporates digital technology Rugged design suitable for 24 hrs operation
• Any number of units can be wired in parallel to increase the number of fault points. Application
• These units can be used for fault annunciation in any environment.
• Rated for 24hrs operation
• Size: 144X144MM
• Cutout: 138X138MM



Minimum Order Quantity: 1
1 Pack contains : 1 Unit
SpecificationSPECIFICATIONS
• Voltage rating: 12V , 24V dc, 80260Vac/dc. Please specify voltage against order
• Voltage range:  +/- 20% of rated voltage
• Frequency: 50 Hz
• Buzzer rating: Continuous
• Lamp rating: Led's continuous
• Window flash time: 1sec on , 1 sec off
• Pushbuttons: Test,Ack,Reset on front facia of annunciator
• Temperature range: -20+55’C
• Trip Contact rating: 5A max
• Thermal rating: Relay will withstand continuously  rated voltage.
SELLER: Teknika Electronics

16 Fault Annunciator TE 938M

Product code (MPN): ITB-1452DFBE
Availability:In Stock
₹ 13600.00  Incl. GST ₹ 11525.42 Excl. GST
  • Description
    16 Fault Annunciator TE 938M
    General Description
    These annunciation units TE938M are digital units with front end lit by led's. Applications are in monitoring fault conditions in any process, equipments etc. A fault condition then triggers a buzzer, trip contact and additional contact for hooter in case an external hooter is desired. On receipt of a potential free fault signal, the corresponding window flashes, two changeover contacts changeover to signal trip indication and an internal electronic buzzer beeps to signal fault condition. One additional contact is provided for hooter in case external hooter is desired. When the acknowledge pushbutton on TE938M is pressed the flashing becomes steady, the buzzer stops and the hooter contact is released. After the removal of the fault the unit can be reset by the reset pushbutton. On pressing lamptest all the windows glow simultaneously and the buzzer sounds. This is a diagnostics tool.

    Salient Features
    • Integrated unit having full feature set
    • Additional lamp test provision enables diagnostics
    • Incorporates digital technology Rugged design suitable for 24 hrs operation
    • Any number of units can be wired in parallel to increase the number of fault points. Application
    • These units can be used for fault annunciation in any environment.
    • Rated for 24hrs operation
    • Size: 144X144MM
    • Cutout: 138X138MM



    Minimum Order Quantity: 1
    1 Pack contains : 1 Unit

    SPECIFICATIONS
    • Voltage rating: 12V , 24V dc, 80260Vac/dc. Please specify voltage against order
    • Voltage range:  +/- 20% of rated voltage
    • Frequency: 50 Hz
    • Buzzer rating: Continuous
    • Lamp rating: Led's continuous
    • Window flash time: 1sec on , 1 sec off
    • Pushbuttons: Test,Ack,Reset on front facia of annunciator
    • Temperature range: -20+55’C
    • Trip Contact rating: 5A max
    • Thermal rating: Relay will withstand continuously  rated voltage.
